1734349-1
Manufacturer:
TE Connectivity
Mfr.Part #:
1734349-1
Datasheet:
Description:

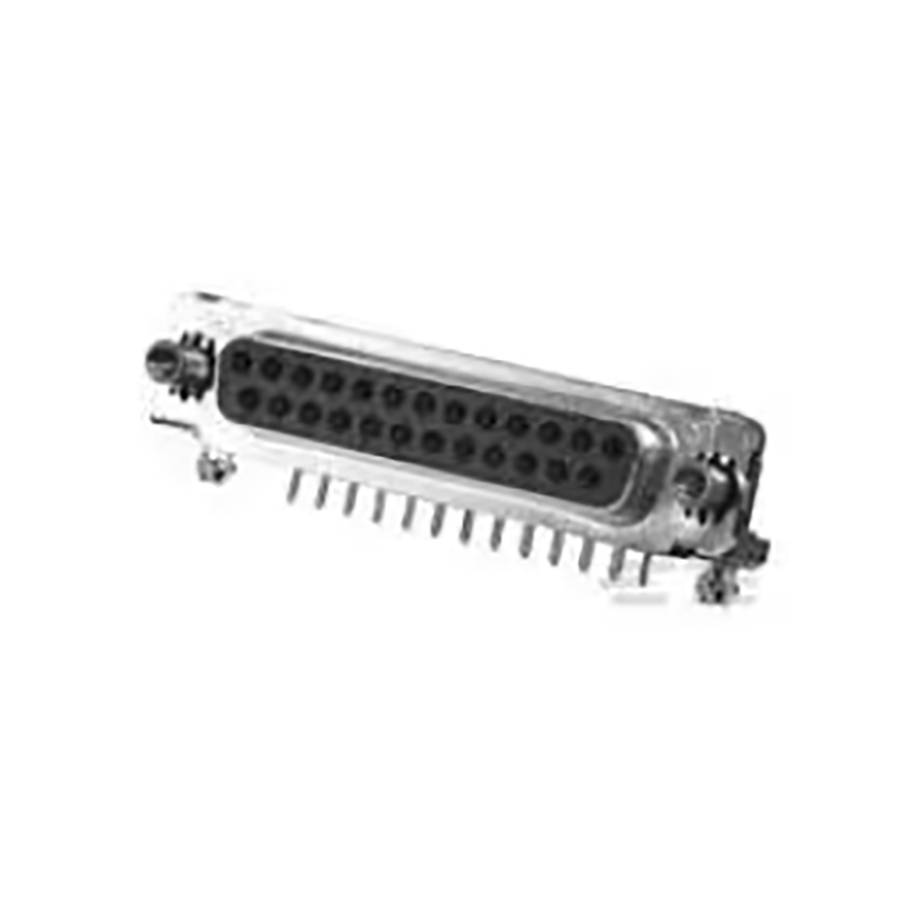

D-Sub Connectors Through Hole Receptacle, Female Sockets Number of Positions:25 Solder Female
| Parameter | Value |
|---|---|
| Length | 53.1 mm |
| Width | 12.5 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Box |
| Voltage Rating | 250 V |
| Depth | 18.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin, Gold |
| Lead Length | 3.175 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.77 mm |
| Type | Receptacle, Female Sockets |
| Number of Terminals | 25 |
| Current Rating | 2 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Color | Black |
| Gender | Female |
| Shielding | Unshielded |
| Number of Contacts | 25 |
| ELV | Compliant |
| Body Material | Metal |
| Hole Diameter | 3.175 mm |
| Connector Type | Receptacle |
| Contact Type | Signal |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Housing Material | PBT |
| Number of Ports | 1 |
| Housing Color | Black |
| Plating | Nickel |
| PCB Mounting Orientation | Right Angle |
| PCB Thickness | 1.57 mm |
| Contact Shape | Round |
| Preloaded | Yes |
| Shell Material | Steel |
